120 V OutputDual MPPTLess than 10 ms

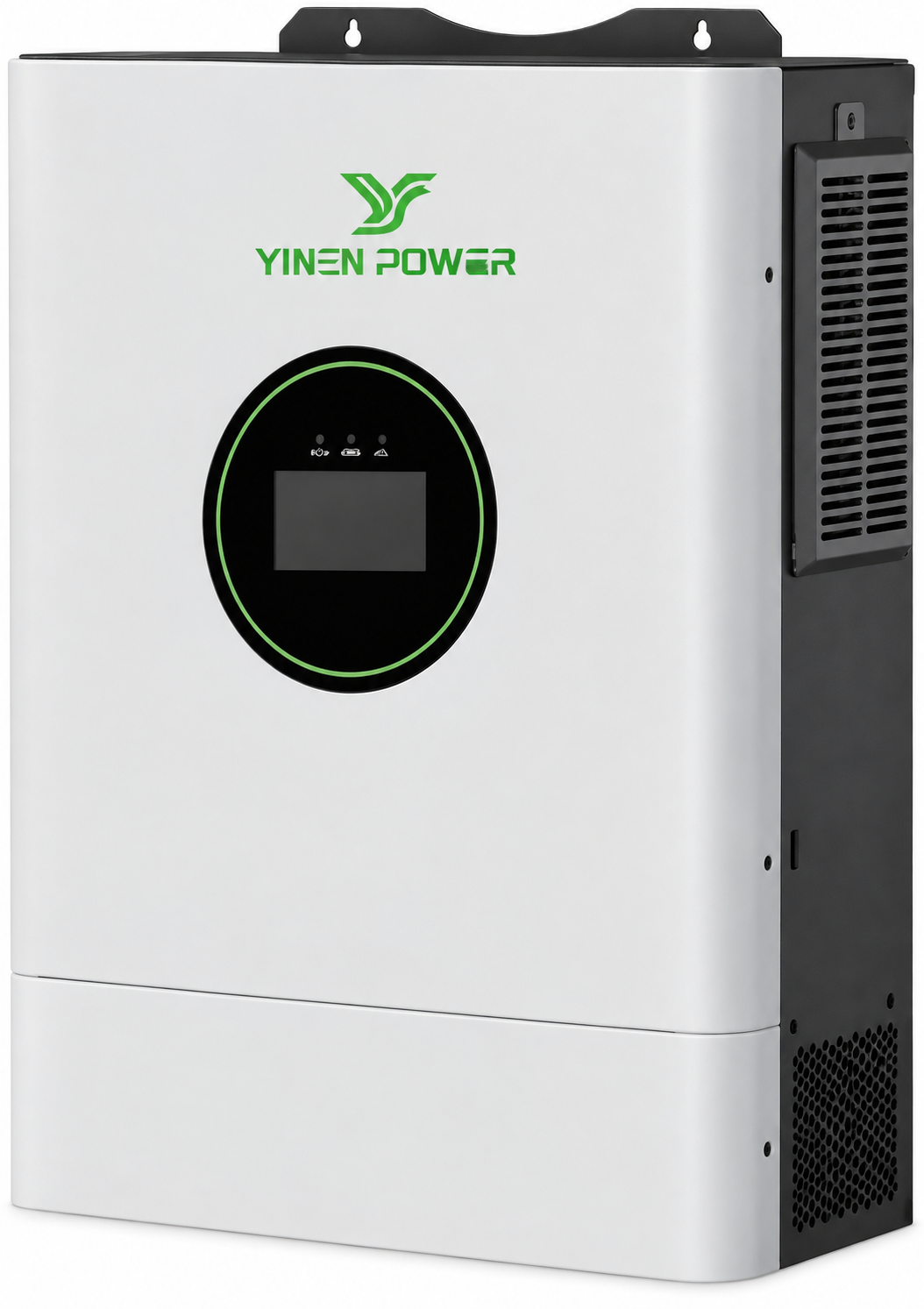

US-R3600-24
Rated output: 3.6 kW
Battery: 24 VDC
MPPT range: 90-260 VDC
Send Inquiry
US-S / US-R SERIES 02
Seven US-S / US-R models from 3.6 kW to 12.0 kW rated configurations.
US-S / US-R SERIES 02
Compare output voltage, battery voltage and PV input across seven models. Share your load list and system plan to confirm the right configuration.

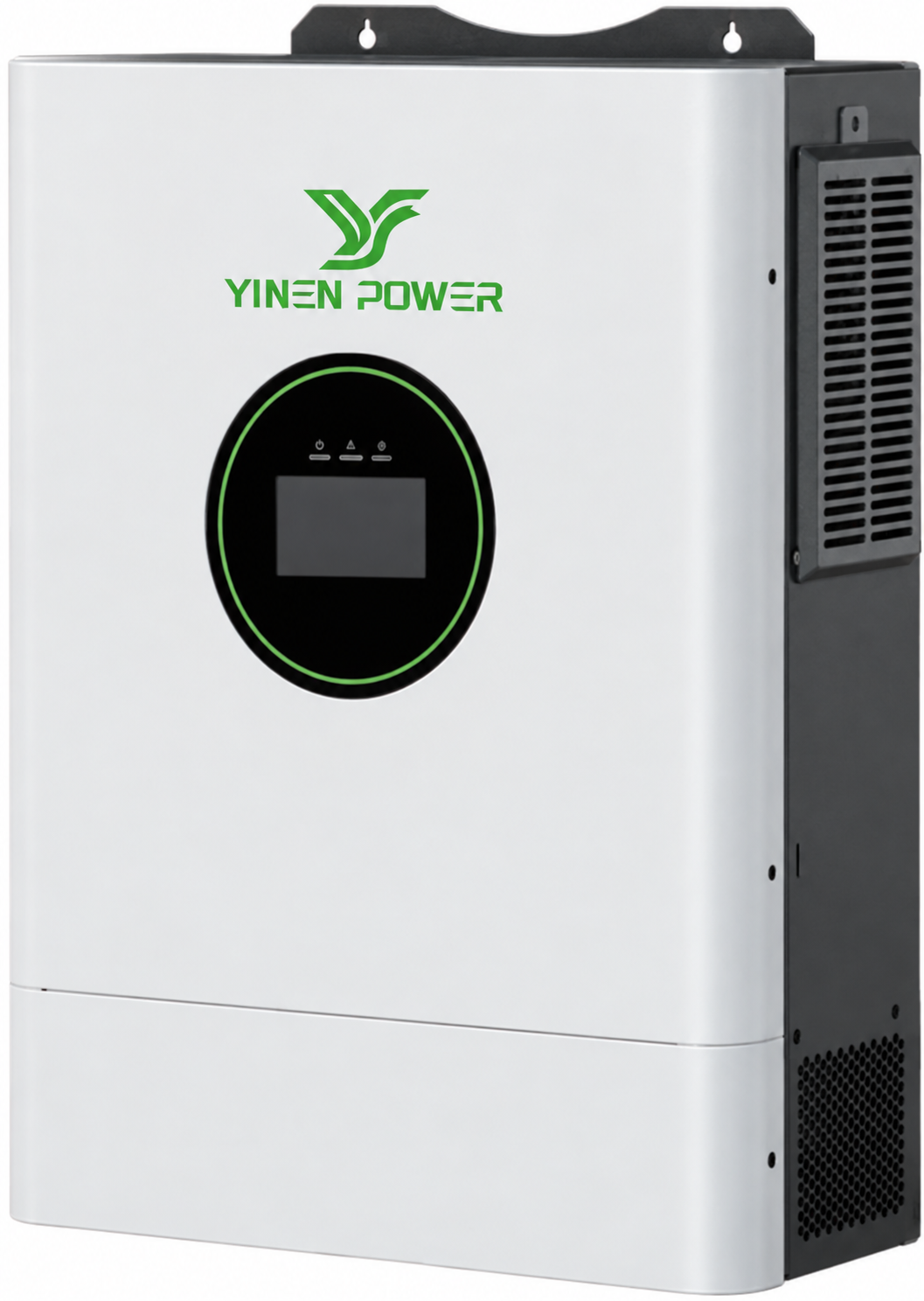

* US-S4000-24 data is transcribed from the factory brochure and needs final factory confirmation before ordering.
The YINEN POWER US-S / US-R Series 02 covers hybrid inverter options for residential solar and backup systems. The range includes 120 V output models and 120/240 V split-phase models, with rated outputs from 3.6 kW to 12.0 kW depending on the model and operating mode.
Compare the published values below. Request the latest factory datasheet before final PV, battery and load sizing.
| Specification | R3600-24 | R3600-48 | S4000-24 | R6500-48 | R6200-48 | R7200-48 | R12000-48 |
|---|---|---|---|---|---|---|---|
| Rated AC output | 3.6 kW | 3.6 kW | 4.0 kW* | 6.5 kW | 6.2 / 4.8 kW | 7.2 / 6.0 kW | 12.0 / 7.2 kW |
| AC output | 120 VAC | 120 VAC | 100/110/120/127 VAC | 120 VAC | 120/240 VAC | 120/240 VAC | 120/240 VAC |
| Battery | 24 VDC | 48 VDC | 24 VDC | 48 VDC | 48 VDC | 48 VDC | 48 VDC |
| MPPT range | 90-260 VDC | 90-260 VDC | 60-450 VDC | 90-260 VDC | 90-450 VDC | 90-450 VDC | 90-450 VDC |
| Parallel units | Not stated | 6 | Not stated | 6 | Not stated | 6 | 6 |
OUTPUT OPTIONS

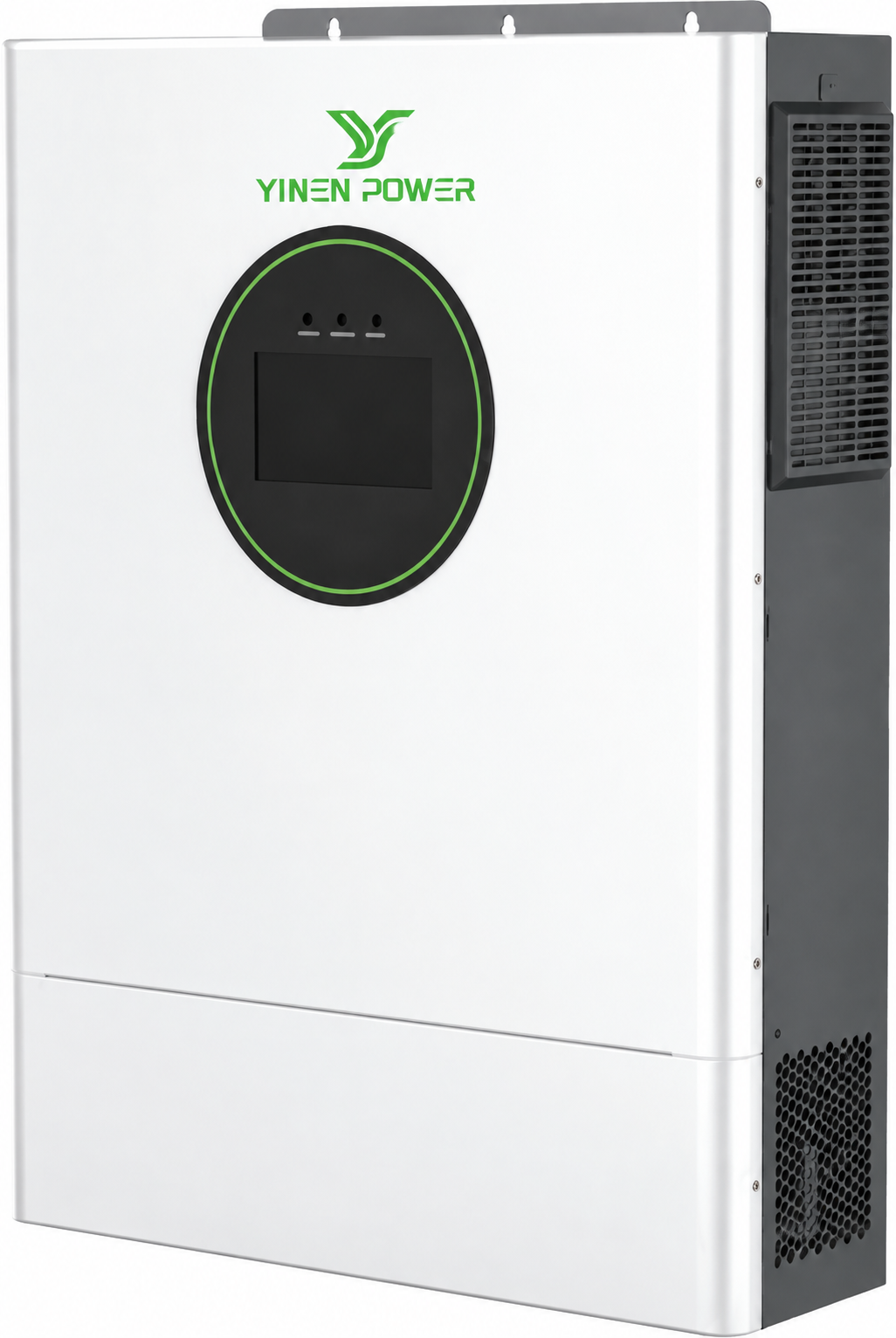

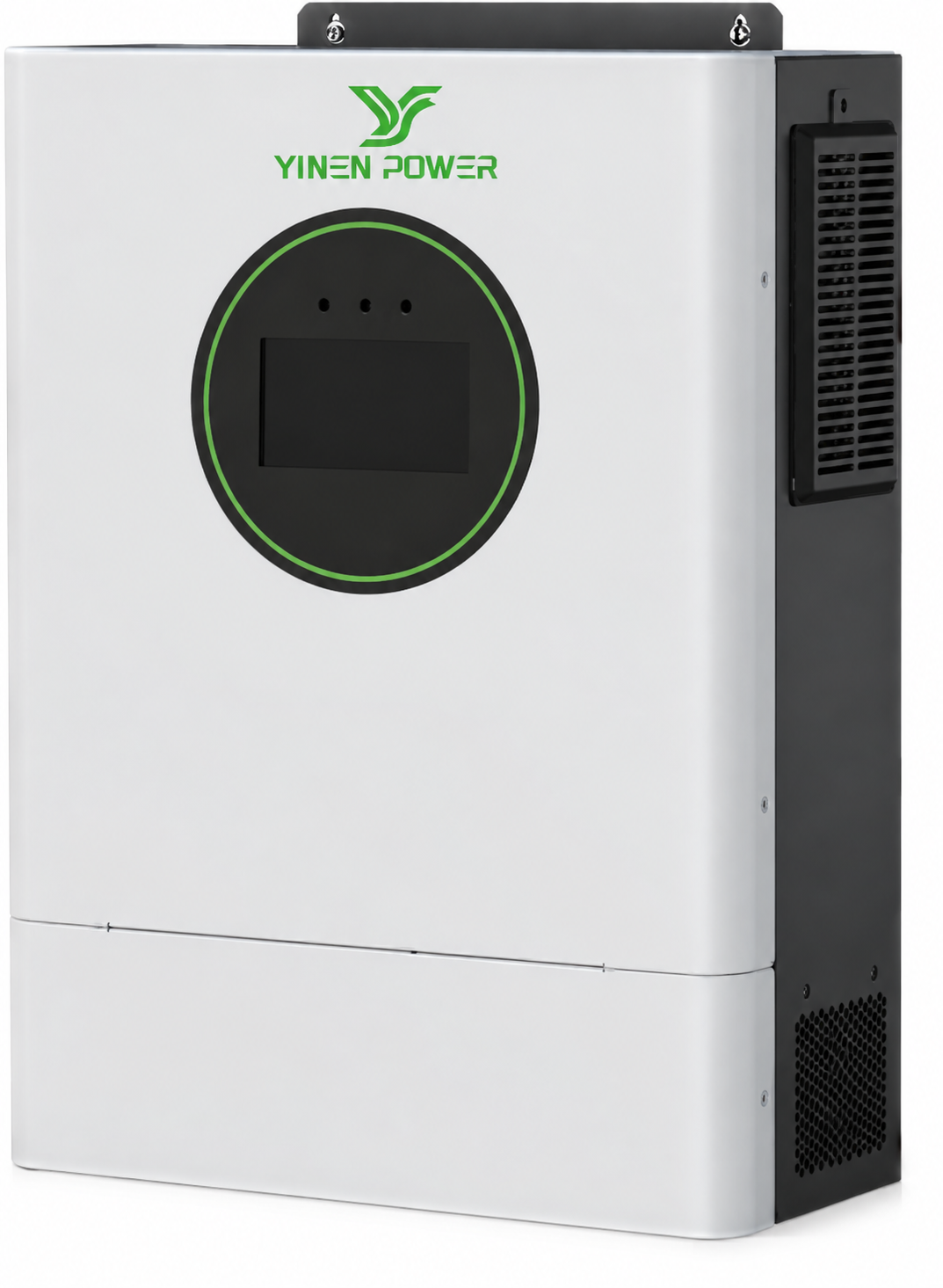

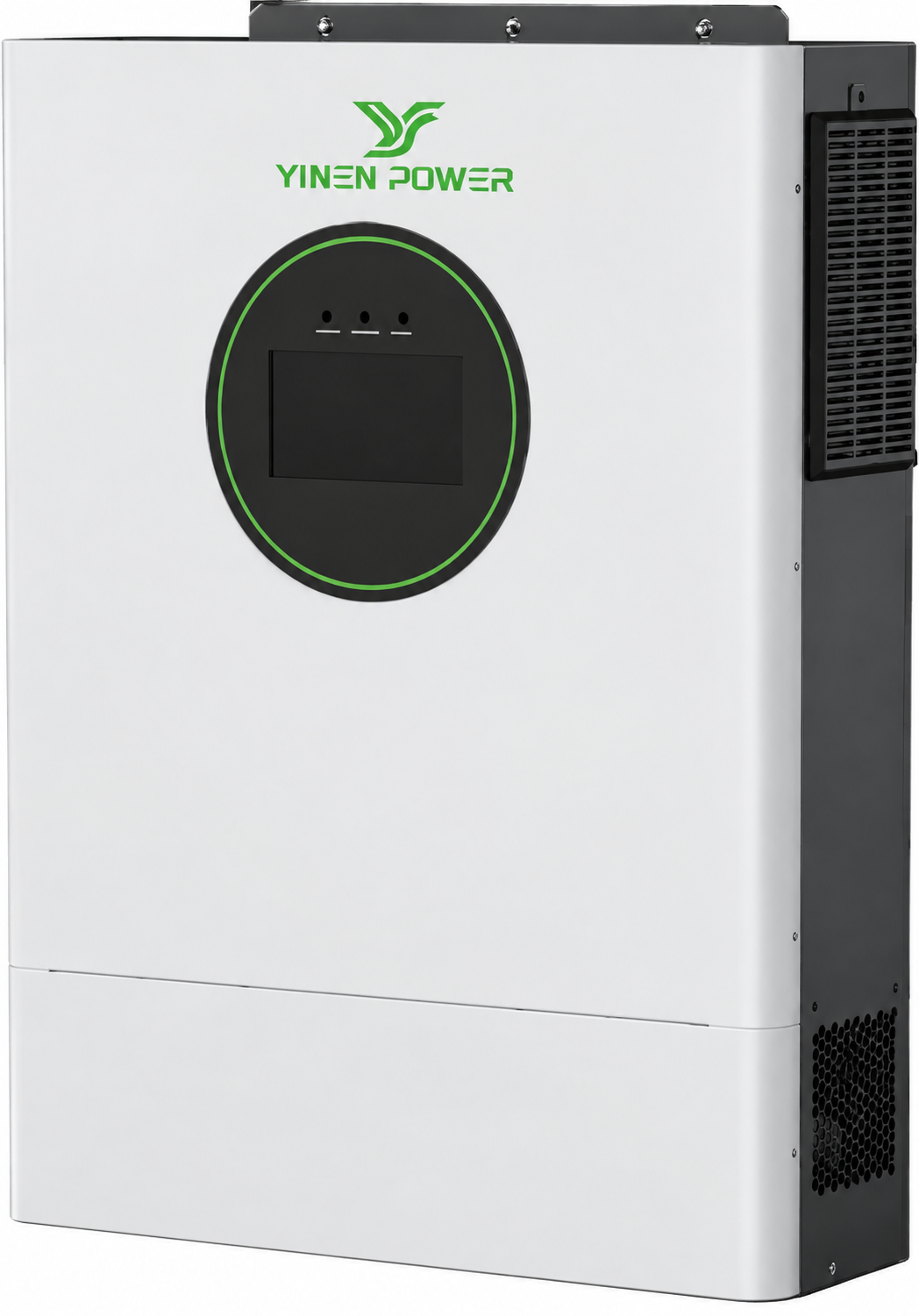

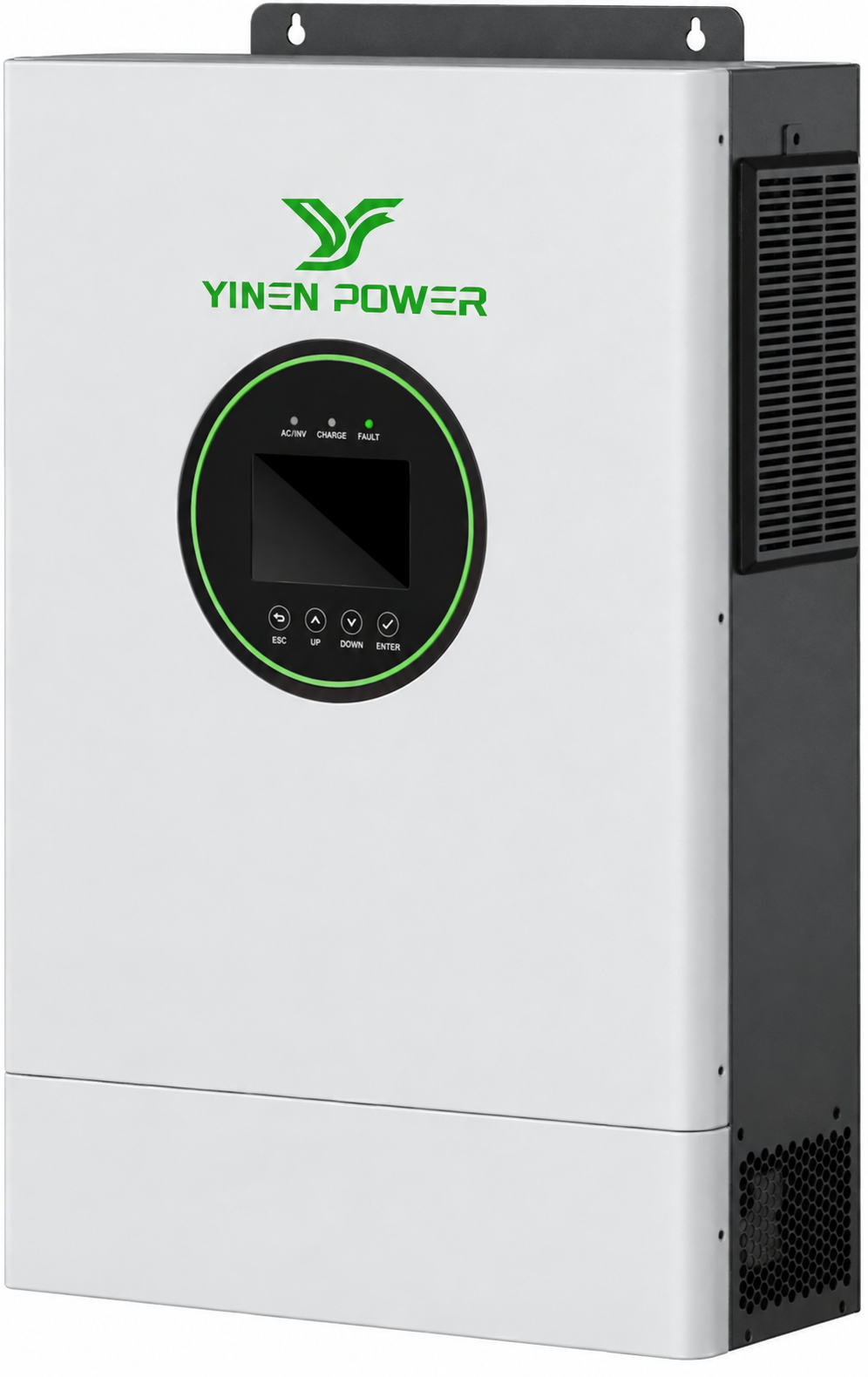

The US-R3600 and US-R6500 models provide 120 V AC output. US-R6200-48, US-R7200-48 and US-R12000-48 add 120/240 V split-phase output. Confirm continuous and starting loads before choosing a model.
COMMON QUESTIONS
US-R6200-48, US-R7200-48 and US-R12000-48 are the stated split-phase options. Confirm output mode and load arrangement for the exact model.
US-R3600-24 and US-S4000-24 are listed as 24 V models. The other models shown use 48 V nominal batteries.
Do not assume parallel operation applies to every model. The brochure lists up to six units for selected models only.
Send the model number, AC output requirement, load list, PV array plan, battery voltage, destination country and quantity through the inquiry form.
Share your AC output, load list, PV array, battery plan, destination country and quantity. We can confirm the applicable model with your project requirements.
