Single-Phase Off-Grid Hybrid Inverter
INV 1200-12 / INV 2000-12
- 1.2 kW or 2.0 kW rated pure sine wave output
- 12 V lithium and lead-acid battery support
- 0.8 kW or 3.0 kW maximum PV input, depending on model
- Fast switching time of less than 10 ms
- Built-in MPPT solar charger, up to 100 A on INV 2000-12
- LCD display and RS485 / CAN / USB communication
- Optional WiFi / 4G monitoring
- IP21 protection for protected indoor installation
+
INV / INW Series · 01
Single-Phase Off-Grid Hybrid Inverter Models
Explore INV and INW models for single-phase off-grid solar and backup systems. Share your load, battery and PV requirements to find the right configuration for your project.
INV 1200-12 / INV 2000-12
- Rated output: 1.2 / 2.0 kW
- Battery: 12 VDC
- MPPT range: 17–115 / 30–400 VDC
INV 3600-24
- Rated output: 3.6 kW
- Battery: 24 VDC
- MPPT range: 40–450 VDC
INV 5000-24
- Rated output: 5.0 kW
- Battery: 24 VDC
- MPPT range: 60–450 VDC

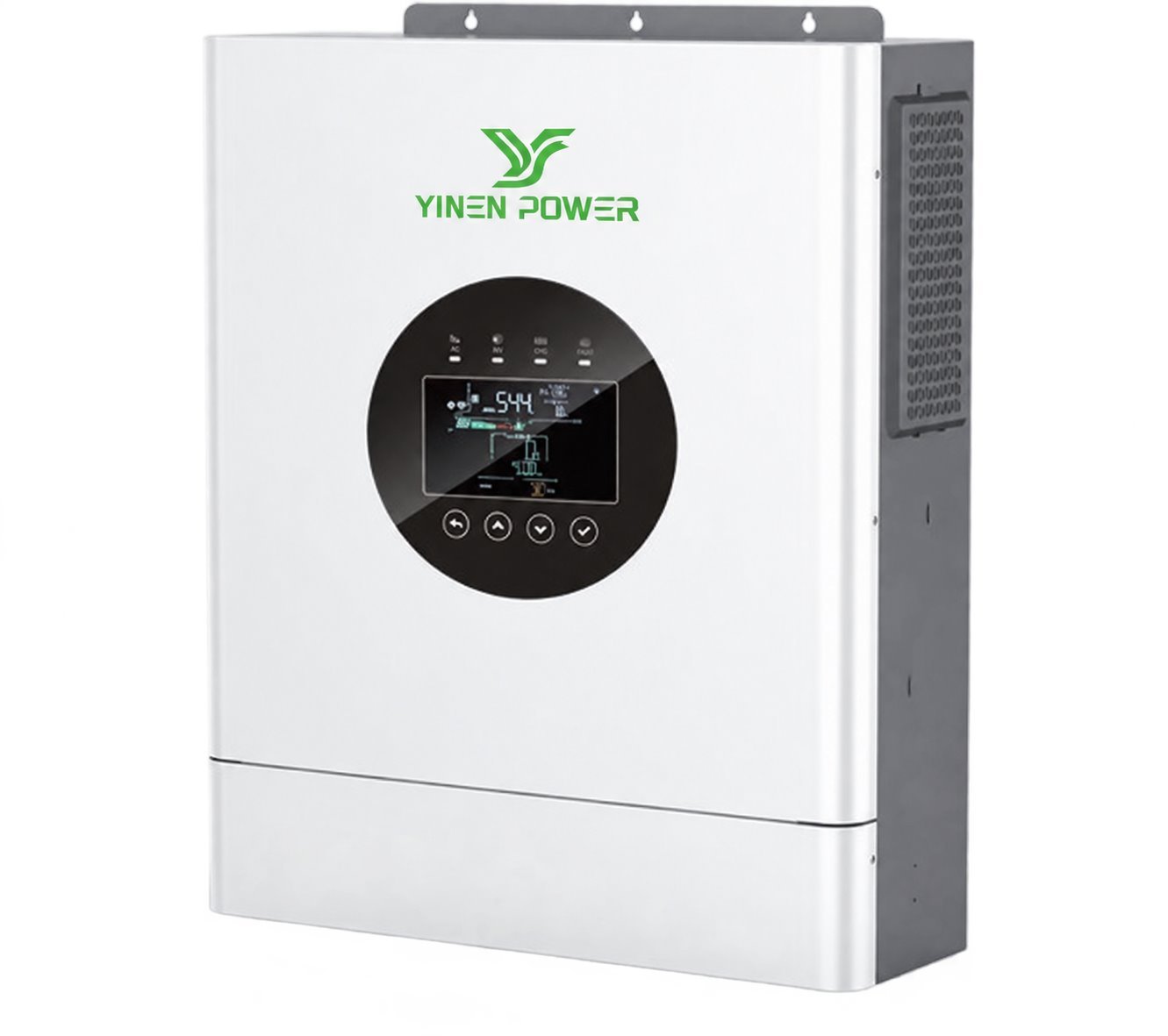

INV 6500-48
- Rated output: 6.5 kW
- Battery: 48 VDC
- MPPT range: 60–450 VDC

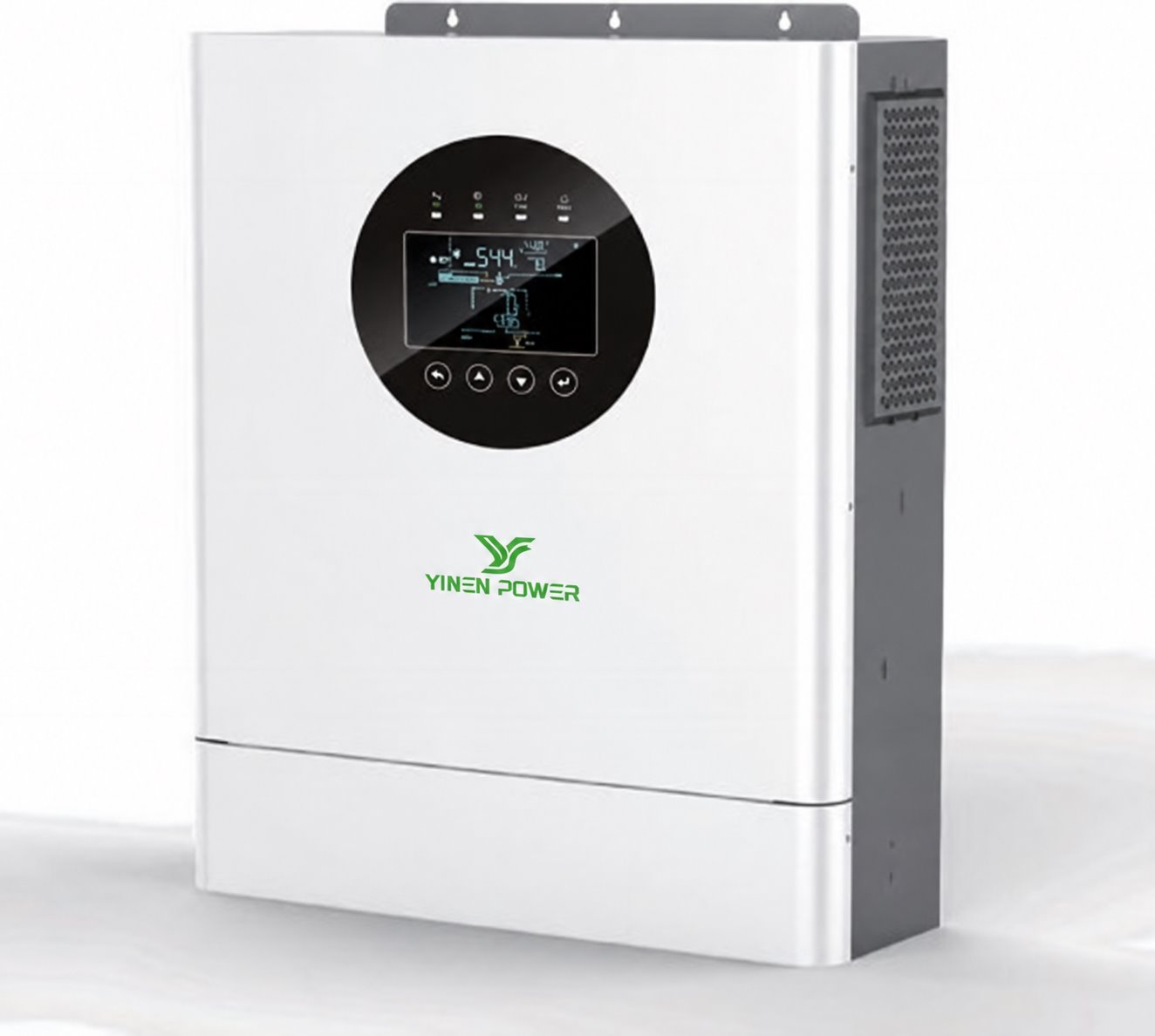

INV 12000-48
- Rated output: 12 kW
- Battery: 48 VDC
- MPPT range: 60–450 VDC

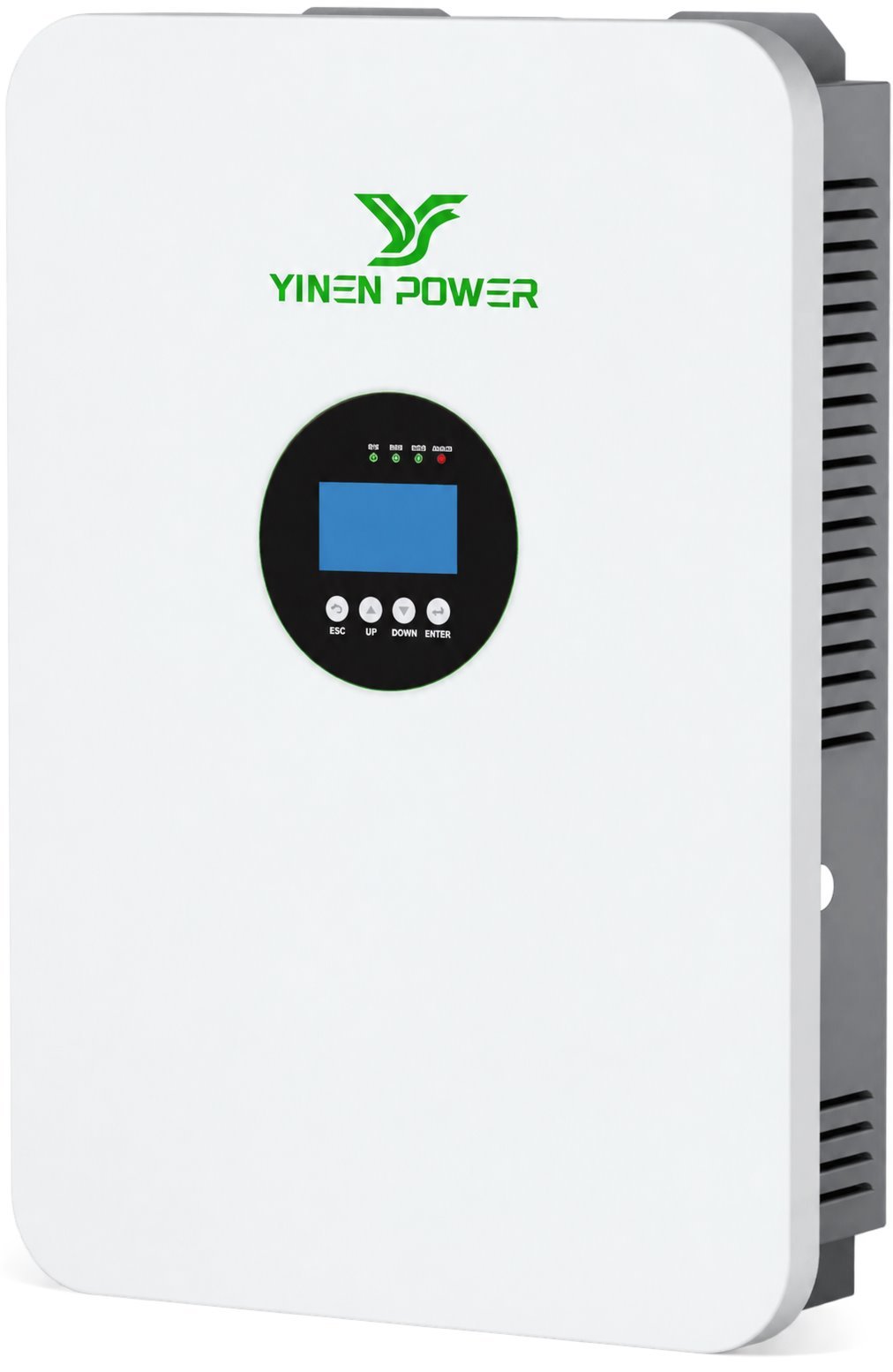

INW 3600-24
- Rated output: 3.6 kW
- Battery: 24 VDC
- MPPT range: 40–450 VDC

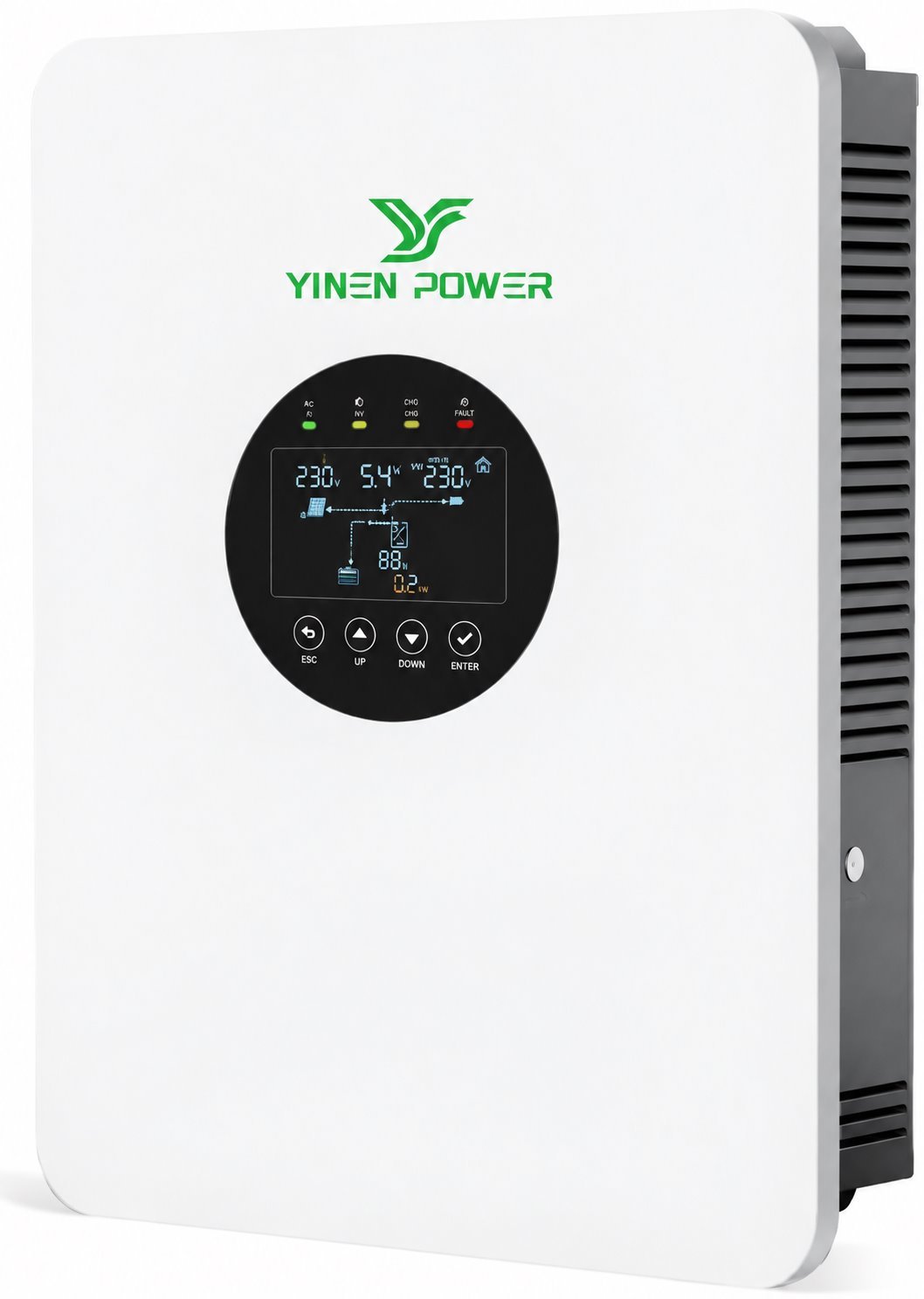

INW 6500-48
- Rated output: 6.5 kW
- Battery: 48 VDC
- MPPT range: 60–450 VDC

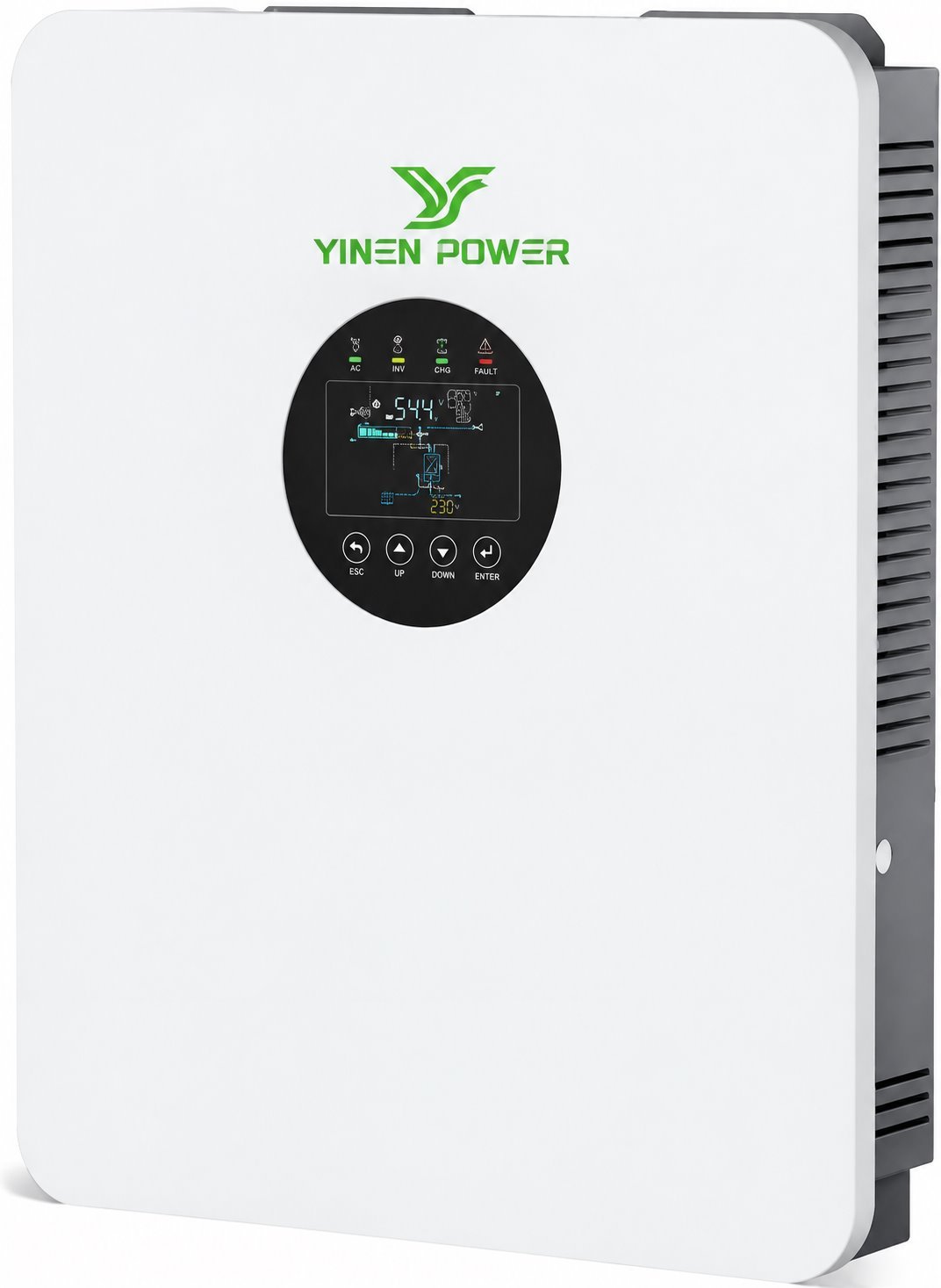

INW 12000-48
- Rated output: 12 kW
- Battery: 48 VDC
- MPPT range: 60–450 VDC
Ratings are taken from the supplied factory brochure. Confirm the latest specification and exact model before ordering.
Description
The YINEN INV 1200-12 and INV 2000-12 are compact single-phase off-grid hybrid inverters for small solar and backup systems. They combine PV charging, utility charging and bypass, battery operation, and pure sine wave AC output in one unit.
Both models work with 12 V lithium or lead-acid batteries and switch in less than 10 ms. Select the 1.2 kW or 2.0 kW version according to continuous load, starting surge, PV array and charging requirements. Confirm battery compatibility and the final system design before ordering.
Technical Data
| Specification | INV 1200-12 | INV 2000-12 |
|---|---|---|
| PV Input | ||
| Maximum PV input power | 0.8 kW | 3.0 kW |
| Maximum PV input current | 18 A | 18 A |
| Maximum PV short-circuit current | 20 A | 22 A |
| PV open-circuit voltage | 115 VDC | 450 VDC |
| Start-up voltage | 20 VDC | 40 VDC |
| MPPT voltage range | 17–115 VDC | 30–400 VDC |
| AC Input | ||
| Rated input voltage | 208 / 220 / 230 / 240 VAC, L + N + PE | 208 / 220 / 230 / 240 VAC, L + N + PE |
| Input voltage range | 90–280 VAC Normal / 170–280 VAC UPS | 90–280 VAC Normal / 170–280 VAC UPS |
| Frequency | 50 / 60 Hz | 50 / 60 Hz |
| Maximum bypass input current | 10 A | 17 A |
| Parallel operation | Not available | Not available |
| AC Output | ||
| Rated capacity | 1.2 kW | 2.0 kW |
| Rated battery-mode output | 1.2 kW | 2.0 kW |
| Output voltage | 208 / 220 / 230 / 240 VAC | 208 / 220 / 230 / 240 VAC |
| Frequency | 50 / 60 Hz | 50 / 60 Hz |
| Output waveform | Pure sine wave | Pure sine wave |
| Peak power | 200% for 10 seconds | 200% for 10 seconds |
| Maximum battery-mode efficiency | 90% at 12 VDC | 91% at 12 VDC |
| Switching time | <10 ms | <10 ms |
| Battery | ||
| Nominal battery voltage | 12 VDC | 12 VDC |
| Maximum AC charging current | 50 A | 100 A |
| Maximum PV charging current | 50 A | 100 A |
| Maximum PV + AC charging current | 100 A | 100 A |
| Maximum battery discharge current | 110 A | 160 A |
| Operating voltage range | 10.8–14.6 VDC | 10.8–14.6 VDC |
| General Data | ||
| Display | LCD | LCD |
| Communication | RS485 / CAN / USB | RS485 / CAN / USB |
| Monitoring | WiFi / 4G optional | WiFi / 4G optional |
| Ingress protection | IP21 | IP21 |
| Operating temperature | −10°C to 55°C | −10°C to 55°C |
| Relative humidity | 5%–95%, non-condensing | 5%–95%, non-condensing |
| Maximum operating altitude | 4,000 m; derating above 2,000 m | 4,000 m; derating above 2,000 m |
| Net weight | 3.8 kg | 4.8 kg |
| Gross weight | 4.5 kg | 5.7 kg |
| Product size | 330 × 226 × 110 mm | 330 × 260 × 120 mm |
| Package size | 410 × 306 × 160 mm | 406 × 346 × 196 mm |

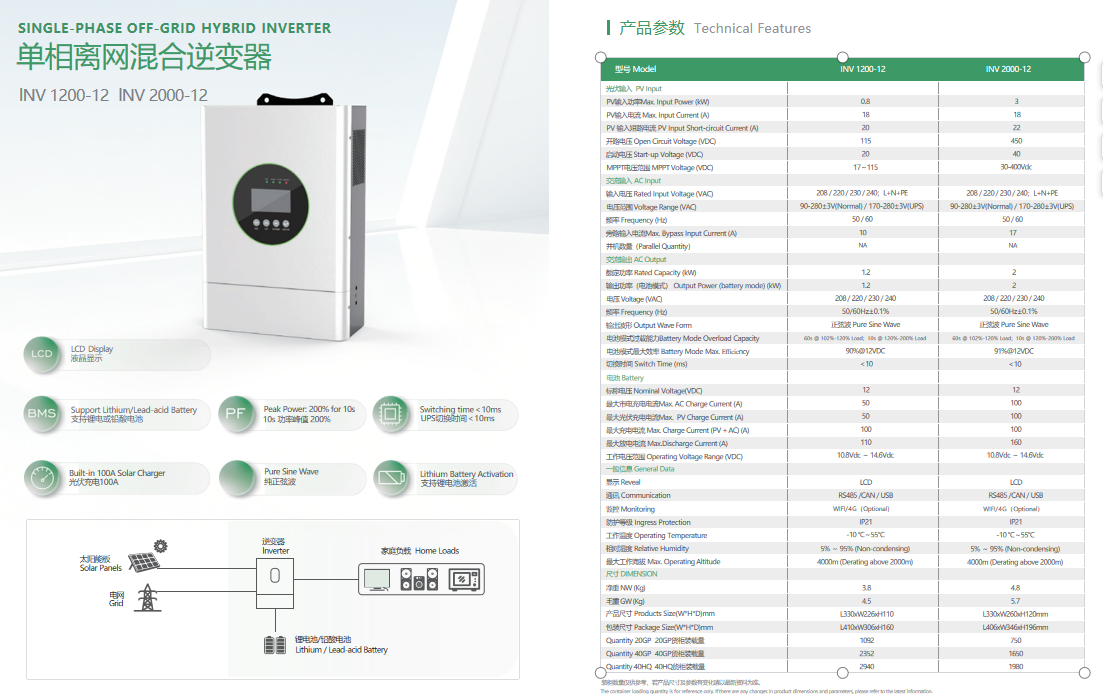

Values are transcribed from the supplied product sheet. Confirm the latest production specification before quotation or system design.
Single-Phase Off-Grid Hybrid Inverter Details
One unit for solar, battery and utility backup
The inverter integrates PV charging, utility charging, battery operation and bypass in a compact enclosure for compatible single-phase loads.
- 12 V lithium and lead-acid battery support
- LCD status display on the front panel
- Pure sine wave output for compatible loads
- Model-specific PV and charging limits
Features
Fast transfer and practical system control
Switching below 10 ms helps maintain compatible essential loads when input conditions change. RS485, CAN and USB support communication, with optional WiFi or 4G monitoring.
Confirm the battery protocol, load starting current and PV array design for the selected model.
Detailed Show
Match the PV array and 12 V battery to the selected model’s input limits.
Review continuous and starting loads before choosing the 1.2 kW or 2.0 kW model.
Ask YINEN for current packaging details and approved project imagery.
Download Center
Current PDF files have not been supplied. These links open YINEN’s inquiry form instead of a placeholder download.
Common questions
Frequently Asked Questions
Find quick answers about choosing an INV / INW off-grid hybrid inverter. Final settings and compatibility depend on the exact model and system design.
How do I choose the right inverter output rating?
Start with the continuous power and starting surge of the loads you want to run. The models shown here range from 1.2 kW to 12 kW. Battery voltage, PV input limits and the required backup duration should also be checked before selecting a model.
Can these inverters work with lithium and lead-acid batteries?
The supplied product information lists support for lithium and lead-acid batteries. Check the exact battery voltage and, for lithium systems, confirm BMS communication and charging settings for the selected inverter model.
Can the inverter supply power when the grid is unavailable?
These are off-grid hybrid inverters designed to combine solar PV, battery operation and utility input for backup applications. Available operating modes and battery requirements vary by model, so confirm the proposed wiring and configuration before installation.
What PV input voltage should my solar array use?
The allowable MPPT voltage range is model-specific. The product cards above show the published ranges for each model; also verify the maximum PV power, open-circuit voltage and current against the final datasheet before sizing your array.
Is transfer time under 10 ms for every model?
The supplied specification lists a switching time of less than 10 ms for INV 1200-12 and INV 2000-12. Ask for the current datasheet if transfer time is critical for another INV or INW model or for a sensitive load.
Which models support parallel operation or remote monitoring?
The supplied INV / INW series material identifies parallel capability for selected higher-output models, while WiFi monitoring is listed as optional on several models. Confirm the permitted number of units, accessories and firmware version for the exact configuration you plan to order.
How can I get a datasheet or installation manual?
Use the Download Center request buttons or the inquiry form below. Please include the model number, destination country and project requirements so YINEN POWER can provide the current documents for your configuration.
