EU-A7200-48 European standard single-phase hybrid inverter

EU-A / EU-D SERIES · 03

European Standard Single-Phase Hybrid Inverter

Two YINEN POWER models for 220/230 V single-phase solar and battery systems.

  • 7.2 kW and 12 kW rated output options
  • 48 VDC nominal battery system
  • 10.5 kW or 15.6 kW maximum PV input
  • IP66 protection and optional WiFi / 4G monitoring
Send Your Inquiry →
MODELSDESCRIPTIONTECHNICAL DATADETAILSFAQ

SERIES 03

EU-A / EU-D Hybrid Inverter Models

Compare the two European standard single-phase configurations from the supplied factory brochure.

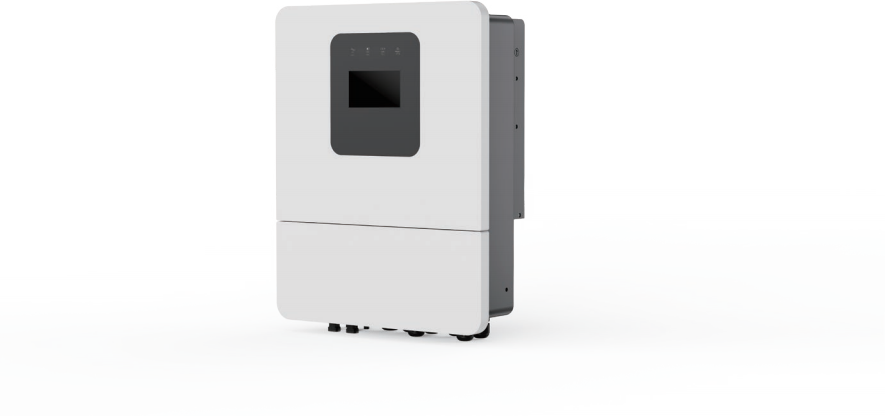

EU-A7200-48 product image

EU-A7200-48

7.2 kW AC10.5 kW PVIP66
AC output: 220 / 230 V
Battery: 48 VDC
MPPT range: 90–425 VDC
Send Inquiry

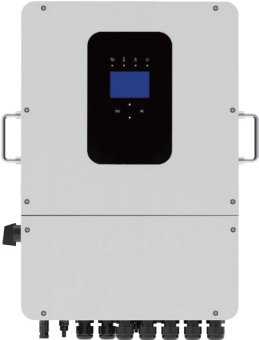

EU-D12000-48 product image

EU-D12000-48

12 kW AC15.6 kW PVIP66
AC output: 220 / 230 V
Battery: 48 VDC
MPPT range: 150–425 VDC
Send Inquiry

Description

The EU-A7200-48 and EU-D12000-48 are Series 03 European standard single-phase hybrid inverters in the supplied factory selection guide. Both use 48 V nominal batteries and 220/230 V AC connections. Choose the model around your load, PV array and charging requirements, then confirm the final system design against the latest factory manual.

Technical Data

Specifications transcribed from the supplied factory selection guide.

SpecificationEU-A7200-48EU-D12000-48
Rated active power7.2 kW12 kW
Max. PV input power10.5 kW15.6 kW
PV input current20 + 20 A26 + 26 + 26 A
PV open-circuit voltage500 VDC500 VDC
PV start-up voltage125 VDC125 VDC
MPPT range90–425 VDC150–425 VDC
Grid / load voltage220 / 230 VAC, L + N + PE220 / 230 VAC, L + N + PE
Battery voltage48 VDC48 VDC
Max. AC / PV charge current120 / 120 A250 / 250 A
Max. discharge current160 A250 A
Parallel quantity (table)66*
Ingress protectionIP66IP66
MonitoringOptional WiFi / 4GOptional WiFi / 4G
Dimensions473 × 377 × 219 mm630 × 435 × 259 mm
Net weight14 kg36 kg

* The EU-D12000-48 specification table lists 6 parallel units, while a separate brochure caption says up to 12. Confirm supported quantity and firmware with the factory before ordering.

EU-D12000-48 front view

PRODUCT DETAILS

Built for single-phase solar and storage

The EU-A model offers 7.2 kW rated output and 10.5 kW maximum PV input. The EU-D model steps up to 12 kW rated output and 15.6 kW maximum PV input.

  • Pure sine-wave standalone output
  • Generator and grid connections listed in the brochure
  • IP66 enclosure and optional remote monitoring

COMMON QUESTIONS

Frequently Asked Questions

Which battery voltage do these models use?

Both models are listed for 48 VDC nominal batteries. Check operating range and compatibility in the latest manual.

What are the PV input ranges?

EU-A7200-48 is listed at 90–425 VDC MPPT; EU-D12000-48 is listed at 150–425 VDC MPPT.

Can the EU-D12000-48 run in parallel?

The brochure table lists six units, but a feature caption says up to twelve. Ask YINEN POWER to confirm the supported quantity and firmware.

How do I request a quotation?

Use any inquiry button and share the model, load list, PV array, battery plan, destination country and quantity.
