HC 51.2V100Ah / 206Ah
Nominal capacity: 100 Ah / 206 Ah
Max. charge / discharge: 100 A / 200 A
Operating voltage: 40.0–58.4 VDC
Send Inquiry

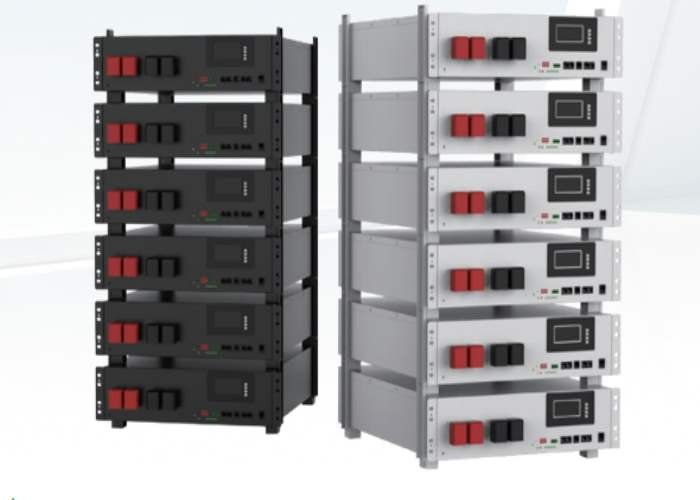

51.2 V LiFePO4 rack-mounted battery options for modular solar energy storage, backup power and practical system expansion.
Select the published energy level that fits your solar system, inverter requirements and expansion plan. Confirm the final model and compatibility with YINEN POWER before ordering.
| Model | HC51.2V100Ah | HC51.2V206Ah | HC51.2V280Ah | HC51.2V314Ah |
|---|---|---|---|---|
| Battery type | LiFePO4 | |||
| Case design | Rack-mounted | |||
| Nominal voltage | 51.2 VDC | |||
| Nominal capacity | 100 Ah | 206 Ah | 280 Ah | 314 Ah |
| Nominal energy | 5120 Wh | 10547 Wh | 14336 Wh | 16076 Wh |
| Float charge voltage | 56.0 VDC | |||
| Operating voltage range | 40.0–58.4 V | 40.0–58.4 V | 40.0–58.4 V | 40.0–58.4 V |
| Max. charge / discharge current | 100 A / 100 A | 200 A / 200 A | 200 A / 200 A | 200 A / 200 A |
| Terminal | M6 | M8 | M8 | M8 |
| Display | LCD | |||
| Communication | CAN, RS485, Bluetooth, Wi-Fi | |||
| IP rating | IP20 | |||
| Safety standard | UN38.3, MSDS | |||
| Working temperature | Charge 0–50°C; discharge −20–50°C | |||
| Humidity | 0–95% non-condensing | |||
Match battery capacity and current capability to the inverter, daily energy target and planned expansion. Share your project details for a practical configuration recommendation.
The factory manual lists CAN, RS485, Bluetooth and Wi-Fi communication. Optional smart BMS compatibility is available for different hybrid solar inverter brands.
Yes. The HC series is designed for flexible expansion. Confirm your intended system voltage, inverter compatibility and installation arrangement before ordering.
Send your inverter model, desired battery capacity, installation location and destination country. Our team will help prepare a suitable quotation.
Share your inverter model, required energy capacity, installation location, destination country and quantity for a practical configuration review.
